STD GEAR BOX

A} NM GEARBX
RATED FOR 60 KG-CM TORQUE
RATIOS AVAILABLE: 48,24,16,12
BACKELITE WHEEL
TYPES -

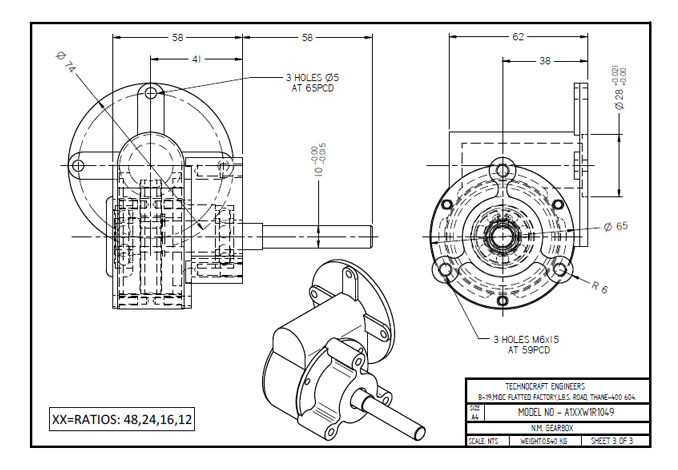

A1} FLANGE MOUNTED




A1 NM GEAR BOX

A1 NM GEAR BOX A1 NM GEAR BOX A1 NM GEAR BOX


A1 NM GEAR BOX A1 NM GEAR BOX

A1 NM GEAR BOX



Download PDF









B} WORM GEARBOX
RATED FOR 150 KG-CM TORQUE
RATIOS AVAILABLE: 48,24,16,10
PRESSURE DIE CAST HOUSING
PROVISION FOR FOOT MOUNTING ( 4 TAPPED HOLES M6x10)


CAN BE FITTED TO MOTOR WITH M6 TAPPED HOLES RANGING FROM 65-70 PCD
TYPES -
B1} STD WORM FOOT MOUNTED GEARBOX
B2} STD WORM FLANGE MOUNTED GEARBOX
B3} FLANGE MOUNTED WORM GEARBOX WITH HOLLOW OUTPUT SHAFT
B4} RIGHT ANGLE FLANGE MOUNTED DOUBLE REDUCTION GEARBOX

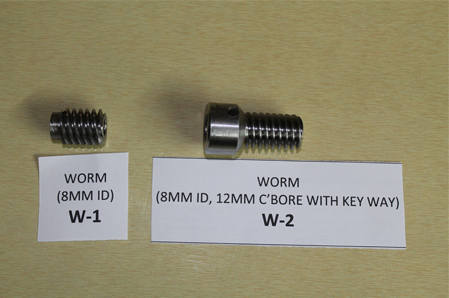

TYPES OF WORMS:
A} W1
WITH 8MM ID
TO BE FITTED ON MOTOR SHAFT BY EANS OF SPLIT DOWEL PIN ( 1/8”x3/8”)
CAN BE USED SAFELY UPTO 5 KG-CM TORQUE TRANSMISSION
B} W2
WITH 8MM ID AS GUIDE AND 12MM COUNTERBORE 14.5MM LONG WITH 4MM KEYWAY
SUITABLE TO TRANSMIT 12KG-CM TORQUE.
WITH M5 GRUB SCREW FOR POSITION LOCKING



DIRECTION OF OUTPUT SHAFT
WHEN LOOKING TOWARDS MOTOR AND GEARBOX IN BETWEEN
L – LEFT HAND R – RIGHT HAND
DIAMETER AND EXTENTION OF THE SHAFT ARE SECIFIED BY LAST FOUR DIGITS
EXAMPLE:
B248W2R1450
RIGHT HAND FLANGE MOUNTED WORM GEARBOX WITH TYPE-2 WORM ( WITH 8MM ID, 12MM C’
BORE AND KEYWAY) OUTPUT SHAFT DIA 14MM AND 50MM LONG







TECHNOCRAFT ENGINEERS



GEAR BOX SPECIFICATIONS PRODUCT CODE

X X X W R/L D E

TYPE MDOELS RATIO WORM TYPES SHFT DIRN. O/P SHAFT DETAILS

a) NM GEARBOX



B) STD WORM GEARBOX

A) FLANE



B) WORM FOOT



C) WORM FLANGE



D) WORM HOLOOW SHAFT

NM = 48,24,16,12



STD WORM = 48,24,16,10

W1 - ID8



W2 - ID8


C'BORE 12


4MM


KEYWAY

R- Right Hand



L-Left Hand

OUTPUT
SHAFT
DIA.
OUTPUT
SHAFT
LENGTH



OUR STD OUTPUT



A1              1049


B1             1450


B2             1450


B3             1789


B4            1450




WORM TYPES
WORM TYPES

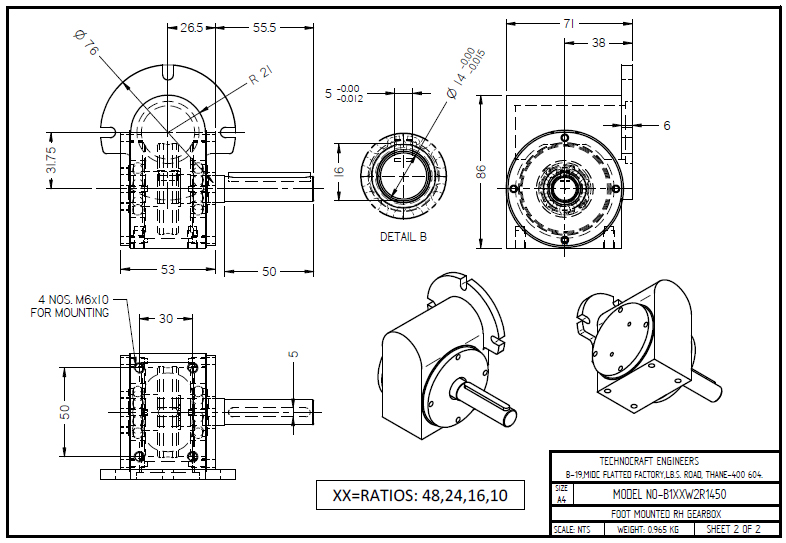

B1 FOOT MOUNTED WORM GEAR BOX


B1 FOOT MOUNTED WORM GEAR BOX B1 FOOT MOUNTED WORM GEAR BOX B1 FOOT MOUNTED WORM GEAR BOX


B1 FOOT MOUNTED WORM GEAR BOX

B1 FOOT MOUNTED WORM GEAR BOX



Download PDF

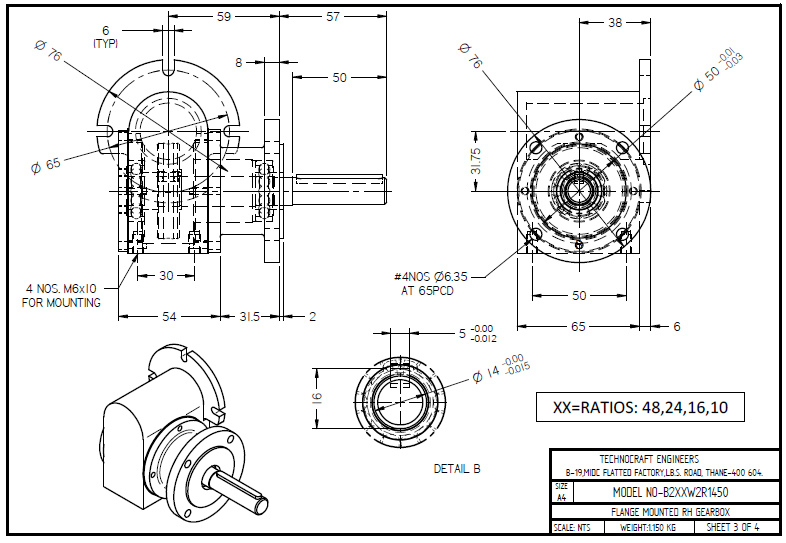

B2 FLANGE MOUNTED WORM GEAR BOX

B2 FLANGE MOUNTED WORM GEAR BOX B2 FLANGE MOUNTED WORM GEAR BOX B2 FLANGE MOUNTED WORM GEAR BOX


B2 FLANGE MOUNTED WORM GEAR BOX B2 FLANGE MOUNTED WORM GEAR BOX


B2 FLANGE MOUNTED WORM GEAR BOX



Download PDF

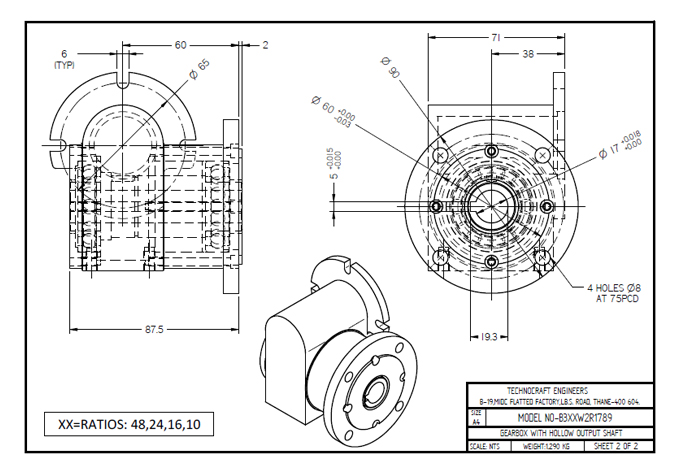

B3 HOLLOW OUTPUT SHAFT

B3 HOLLOW OUTPUT SHAFT B3 HOLLOW OUTPUT SHAFT B3 HOLLOW OUTPUT SHAFT


B3 HOLLOW OUTPUT SHAFT B3 HOLLOW OUTPUT SHAFT B3 HOLLOW OUTPUT SHAFT




Download PDF







B4 DOUBLE REDUCTION GEAR BOX


B4 DOUBLE REDUCTION GEAR BOX B4 DOUBLE REDUCTION GEAR BOX




Download PDF

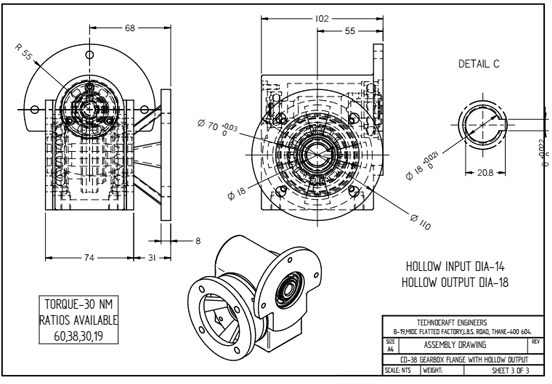

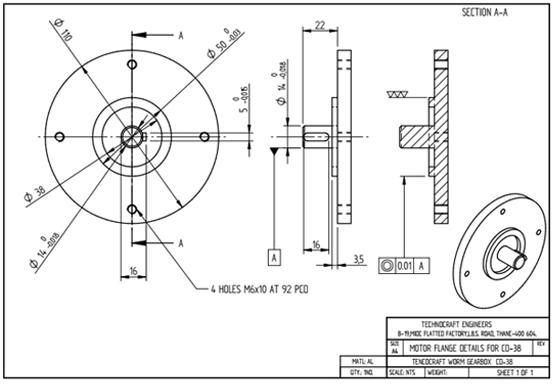

C} WORM GEARBOX CD-38

RATED FOR TORQUE – 30 NM
RATIOS AVAILABLE - 60,50,38,30,19
Hollow Input Shaft – Dia 14
Hollow Output Shaft – Dia 18





WORM GEARBOX CD-38

worm-gear-box-cd-38 WORM GEARBOX CD-38

WORM GEARBOX CD-38 WORM GEARBOX CD-38 WORM GEARBOX CD-38

WORM GEARBOX CD-38



Download PDF
Download PDF

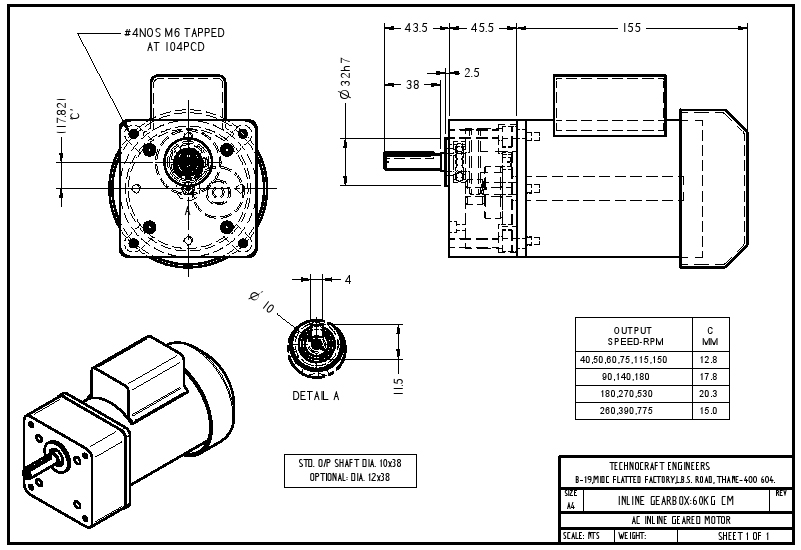

D} INLINE GEARBOX
RATED FOR 60 KG-CM TORQUE
RATIOS AVAILABLE: 24,15,10,5
GRAVITY DIE CAST HOUSING 90MM SQUAREx45 LONG
CAN BE FITTED TO MOTOR HAVING 92 SQUARE FLANGEWITH M6 SCREWS AT 104 PCD.
INPUT SHAFT WITH HELICAL TEETH CUT SUPPLIED BY US ( DIA 16 165/225 LONG)
PRODUCT CODE
D1} INLINE GEAR BOX
EXAMPLE : D124L11038 = INLINE GEARBOX RATIO 24 INPUT 165, OUTPUT DIA 10x38


AC INLINE GEAR MOTOR



Download PDF
