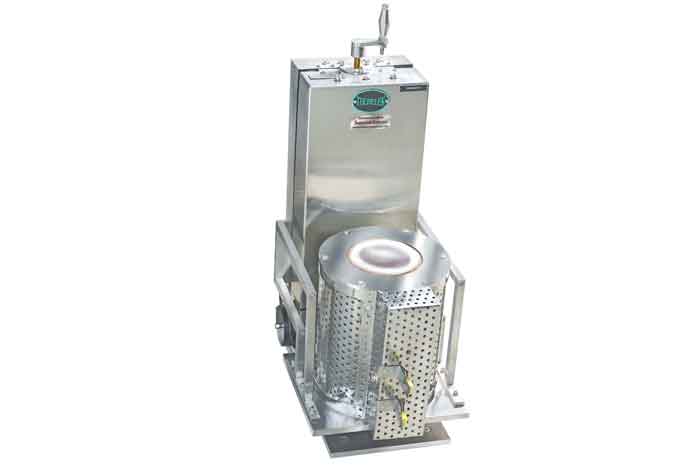

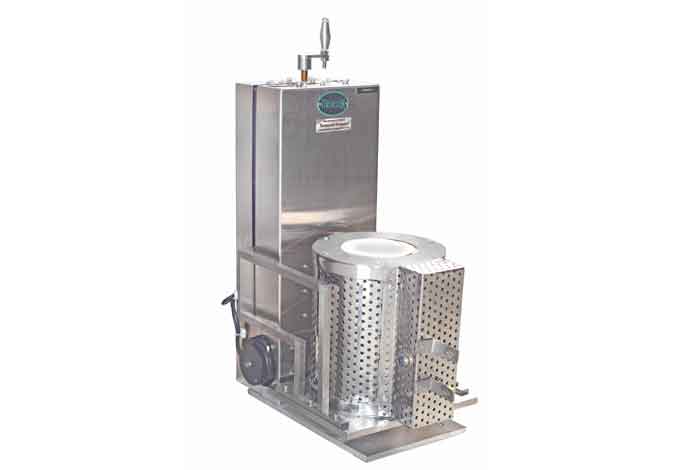

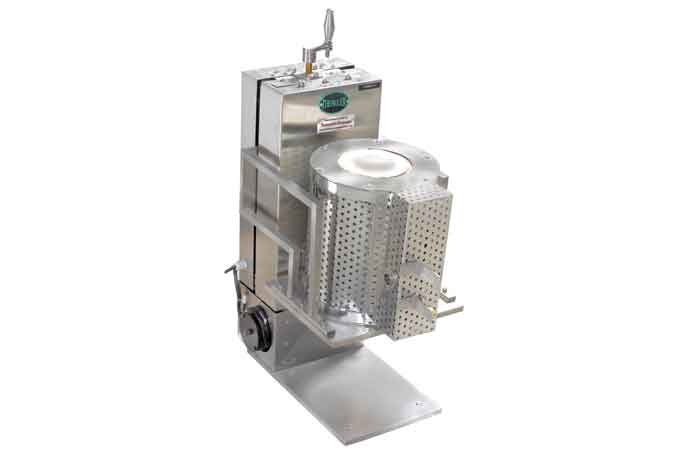

Lift Mechanism
Specifications :
Design, manufacturing, Supply and Installation of Lifting Mechanism
Capacity to lift 50Kg weight smoothly and without lateral movement with adjustable linear speed with maximum speed of 0.6m/min.
1) MOC: SS304
2) Final design complying with reference to drawing- PDD/MHS/LIFT/2015/01
3) For up down precise and smooth movement, Linear Motion Guides and Ground Trapezoidal Lead Screw with thread M20x4P with rails and linier motion guides. Two rails and four guides of Hiwin make, model no 15CC willbe used.
4) Imported Lead Screw with Trapezoidal threads M20x4P, material EN-8
5) All the movements smooth with minimum friction and high efficiency.
6) Drive Motor Details: Power 90 Watts, 230 VAC, Single Phase, 1400/140 RPM,
7) Guide Base Frame Material: SS304.
8) Positional Accuracy: +/- 200µ
9) Lift movement: 330mm Up-Down.
10) Components other than Lead Screw and Rails made in SS304.
11) SS Sheet Metal Cover will be provided to enclose the mechanism.
12) Construction sturdy and easy to dismantle and re-assemble.
13) Two limit switch of reputed make will be provided on top and bottom.
14) Safety mechanism with alarm and indicator in case there is a mismatch
15) As per requirement SS304 base plate of suitable dimension will be used for base mounting of the lift.
Provision of a three way switch to control the movement with proper wiring.

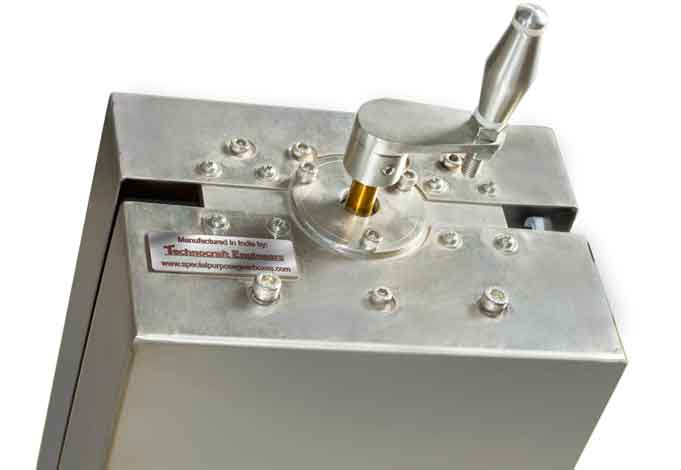

In case of power failure there will be an arrangement for manual movement of thelift by which it can be brought down. (Manual Override)
18) We will get approved Design drawing before fabrication.
19) Lift will be demonstrated for its functionalities at factory before dispatch.
