Geneva Gearbox

Geneva Gearbox

Salient Features


1} Geneva Wheel Dia 140 mm with 8 Slots
2} Size 270x220x78
3} Hollow Output Shaft Dia 18 and Solid Input Shaft Dia 14
4} Will Have Flange for Mounting at Output
Specs of Geneva Mechanism
8 Slots Input will rotate 225 Degrees when Output is stationary and during 135 Deg rotation of Input Output will rotate by 45 Degrees
Torque at the output will be 1.67 times torque at Input.
Rated Output torque 475 N-M

request quote







Geneva Gearbox Geneva Gearbox Geneva Gearbox Geneva Gearbox Geneva Gearbox



Geneva Gearbox Geneva Gearbox

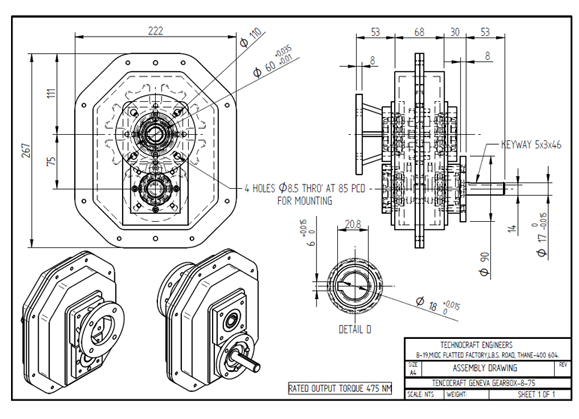

Line Drawing
